Our Advantage: The Only Professional Manufacturer of High-end Vertical Lathe Machine series in China.
11 Years
| Ask Lasest Price | |
| Brand Name : | chenggong |
| Certification : | CE, ISO9001 |
| Model Number : | SCVT400H/W |
| Price : | negotiable |
| Delivery Time : | to be discussed |
| Payment Terms : | TT,L/C |
| Supply Ability : | on order |
Technical parameter:
Item | Unit | Specification | |
Main parameter | Table diameter | mm | 3150 |
Max. turning diameter | mm | 4000 | |
Max. workpiece height | mm | 2000/2800 | |
Max. workpiece weight | Kg | 32000 | |
Max. torque of table | KN.m | 80 | |
Gear box | Spindle speed range | r/min | 0.5-60(2 block stepless) |
Ram | Ram section size | mm×mm | 220×220 |
Vertical travel of ram | mm | 1250/1400 | |
Feeding speed of tool holder | Rapid speed | mm/min | 4000 |
Horizontal travel of tool holder | mm | 2250 | |
Cutting force of right tool holder | KN | 35 | |
Cutting force of left tool holder | KN | 30 | |
Left and right move degree limit | ±° | ±30° | |
Weight | Machine weight | Kg | 62000 |

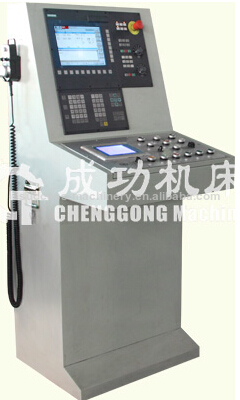

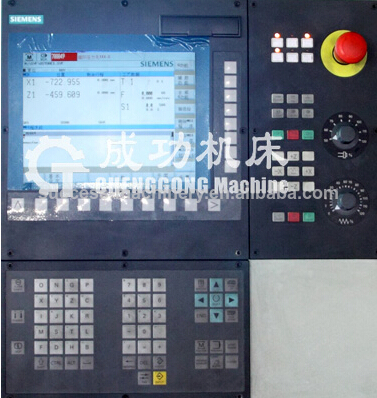

System | CNC system | SIEMENS | |
Power of main motor | KW | DC75 | |
Guideway of table | Static pressure/roll | ||
Torque of feed motor | N.m | 48 | |
Note: Manufacturer reserves the right to improve & modify without prior notice.
Features:
1.This series of machine tools used in hard alloy and ceramic cutting tool, it is processing for the black metals and some non-metallic parts within the outer cylinder Inside and outside, the cone surface, face, groove, boring and rotary surface coarse fine turning.
2. Machine tool main drive, driven by a dc motor through two spindle speed change mechanism, realize the workbench's speed range
3. Machine tools are connected by left and right column, beam, beam, the components of frame type, such as table base structure strong rigidity, high load bearing, beam clamping mechanism hydraulic locking device for multiple station, its stable and reliable work.

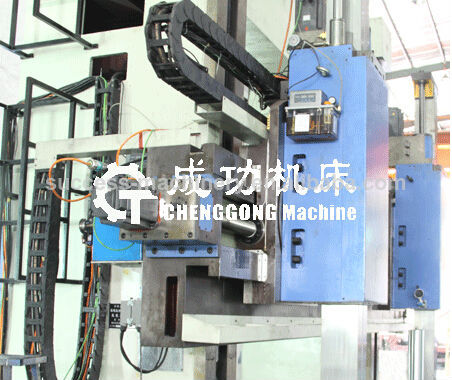

4. The machine tool feeding head adopts double frame structure.Right tool post for numerical control tool rest, left tool post for SPC tool rest About machine tool rest slide horizontal motion X, U axis, vertical ram, a, Z, W axis four axis adopt servo motor drive, the high precision will gears transmission ball screw, realize the rest feed and fast moving.
5. Workbench use thermal symmetric structure. workbench main shaft adopt high precision adjustable double row short cylindrical roller bearing radial clearance centering axial using constant current static pressure guide rail, and configure the oil temperature is device, make workbench has high rotating accuracy, bearing capacity is big, small thermal deformation characteristics.
6. Vertical tool rest horizontal guide rail oil static pressure unloading guide, skid composite guide rail, sliding guide rail For vertical ram movement sliding guide rail.
7. The numerical control system adopts Siemens or rexroth system. Customer also can choose other system.
|
|
